Features#

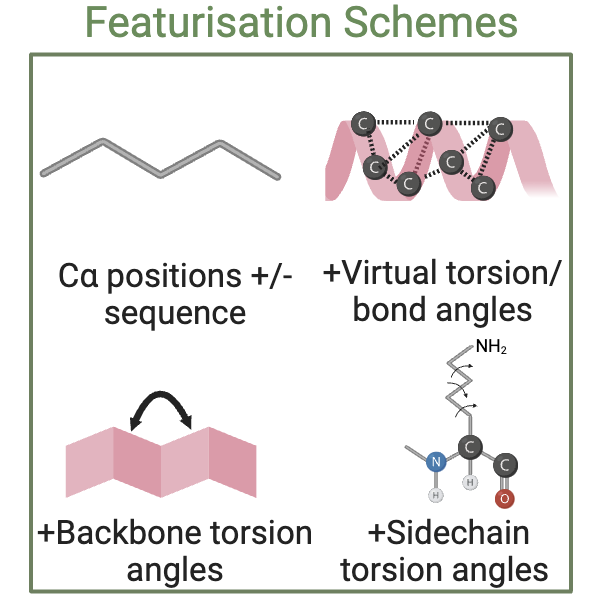

Summary of featurisation schemes

Part of the goal of the proteinworkshop benchmark is to investigate the impact of the degree to which increasing granularity of structural detail affects performance. To achieve this, we provide several featurisation schemes for protein structures.

Invariant Node Features#

N.B. All angular features are provided in [sin, cos] transformed form. E.g.: $textrm{dihedrals} = [sin(phi), cos(phi), sin(psi), cos(psi), sin(omega), cos(omega)]$, hence their dimensionality will be double the number of angles.

Name

Description

Dimensionality

residue_type

One-hot encoding of amino acid type

21

positional_encoding

Transformer-like positional encoding of sequence position

16

alpha

Virtual torsion angle defined by four $Calpha$ atoms of residues $I{-1}, I, I{+1}, I{+2}$

2

kappa

Virtual bond angle (bend angle) defined by the three $Calpha$ atoms of residues $I{-2}, I, I_{+2}$

2

dihedrals

Backbone dihedral angles $(phi, psi, omega)$

6

sidechain_torsions

Sidechain torsion angles $(chi_{1-4})$

8

Equivariant Node Features#

Name

Description

Dimensionality

orientation

Forward and backward node orientation vectors (unit-normalized)

2

Edge Construction#

We predominanty support two types of edges: $k$-NN and $epsilon$ edges.

Edge types can be specified as follows:

python proteinworkshop/train.py ... features.edge_types=[knn_16, knn_32, eps_16]

Where the suffix after knn or eps specifies $k$ (number of neighbours) or $epsilon$ (distance threshold in angstroms).

Invariant Edge Features#

Name

Description

Dimensionality

edge_distance

Euclidean distance between source and target nodes

1

node_features

Concatenated scalar node features of the source and target nodes

Number of scalar node features $times 2$

edge_type

Type annotation for each edge

1

sequence_distance

Sequence-based distance between source and target nodes

1

pos_emb

Structured Transformer-inspired positional embedding of $i - j$ for source node $i$ and target node $j$

16

Equivariant Edge Features#

Name

Description

Dimensionality

edge_vectors

Edge directional vectors (unit-normalized)

1

Default Features#

\(C_{\alpha}\) Only (ca_base)#

config/features/ca_base.yaml#
_target_: proteinworkshop.features.factory.ProteinFeaturiser
representation: CA
scalar_node_features:
  - amino_acid_one_hot
vector_node_features: []
edge_types:
  - knn_16
scalar_edge_features:
  - edge_distance
vector_edge_features: []

\(C_{\alpha}\) + Sequence (ca_seq)#

config/features/ca_seq.yaml#
_target_: proteinworkshop.features.factory.ProteinFeaturiser
representation: CA
scalar_node_features:
  - amino_acid_one_hot
  - sequence_positional_encoding
vector_node_features: []
edge_types:
  - knn_16
scalar_edge_features:
  - edge_distance
vector_edge_features: []

\(C_{\alpha}\) + Virtual Angles (ca_angles)#

config/features/ca_angles.yaml#
_target_: proteinworkshop.features.factory.ProteinFeaturiser
representation: CA
scalar_node_features:
  - amino_acid_one_hot
  - sequence_positional_encoding
  - alpha
  - kappa
vector_node_features: []
edge_types:
  - knn_16
scalar_edge_features:
  - edge_distance
vector_edge_features: []

\(C_{\alpha}\) + Sequence + Backbone (ca_bb)#

config/features/ca_seq_bb.yaml#
_target_: proteinworkshop.features.factory.ProteinFeaturiser
representation: CA
scalar_node_features:
  - amino_acid_one_hot
  - sequence_positional_encoding
  - alpha
  - kappa
  - dihedrals
vector_node_features: []
edge_types:
  - knn_16
scalar_edge_features:
  - edge_distance
vector_edge_features: []

\(C_{\alpha}\) + Sequence + Backbone + Sidechains (ca_sc)#

config/features/ca_sc.yaml#
_target_: proteinworkshop.features.factory.ProteinFeaturiser
representation: CA
scalar_node_features:
  - amino_acid_one_hot
  - sequence_positional_encoding
  - alpha
  - kappa
  - dihedrals
  - sidechain_torsions
vector_node_features: []
edge_types:
  - knn_16
scalar_edge_features:
  - edge_distance
vector_edge_features: []
